Services

Check out our Services

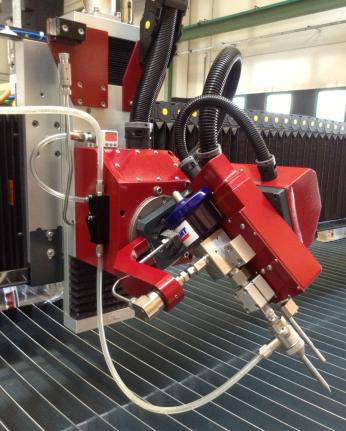

2D & 3D Waterjet Cutting

Using the latest 3D Cutting & Nesting Software, we are able to produce complex shapes in 3D and 2D. The Nesting Software reduces the amount of waste material, maximising the efficiency of cut. We can cut bevelled edges with slopes of up to 45 degrees and straight edges with high efficiency: 3D cutting technology allows us to convert from 2D to 3D on the flexible machine platform at any time.

Other Services

Secondary services such as Deburring, Polishing, Bending, Welding and Machining are available on request.

Our machines and capabilities

#	X = 3.350 mm Y = 1.600 mm Z = 180 mm A=± 55° C= ± 55°	Net Cutting Area	X = 11' Y = 5' Z = 7" A=± 55° C= ± 55°
1	3.600 mm x 1.850 mm	Inner Table Working Area	12' x 6'
2	4.800 mm x 2.300 mm x h 1.800 mm	Overall Dimensions	16' x 7' 1/2 x h 6'
3	0 - 20 mt / min	Rapid Speed	0 - 67' / min
4	5.000 Kg	Weight	11.000 Ib
5	± 0,05 mm	Position Accuracy	± 0,002"
5	± 0,025 mm	Repeatibility	± 0,001"
5	± 0,05 mm	Ball Bar Ø 300 mm	± 0,002"
